GP2200 High-throughput Molecular Diagnostic Laboratory
Product Description
Integrated Nucleic Acid Purification and Real Time qPCR System

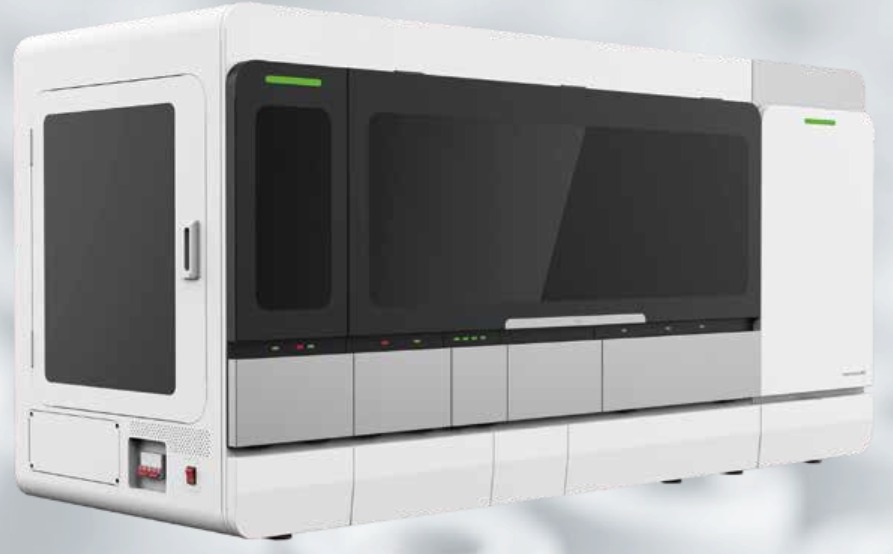

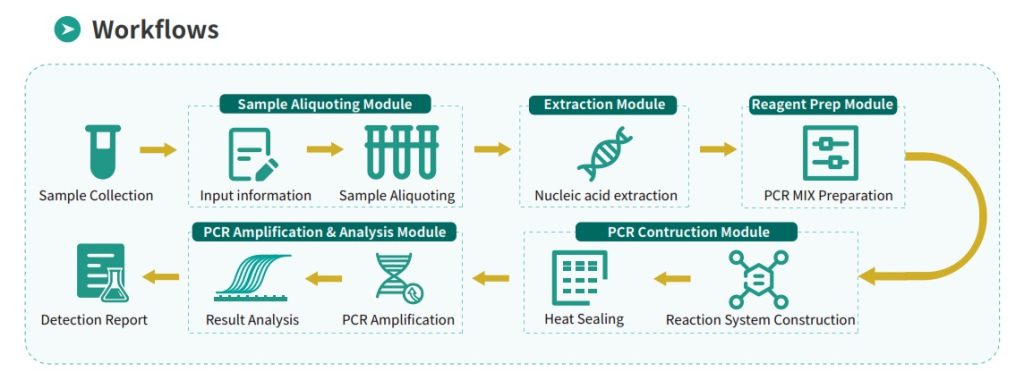

GenePrecision 2200 is a truly automated nucleic acid detection solution that integrates three independent, pressure-controlled chambers – reagent preparation, sample processing, and amplification/detection zones. It performs the complete nucleic acid testing – from original tube loading, automated sample aliquoting, nucleic acid extraction, PCR MIX preparation, reaction system construction, PCR amplification, to final analysis – with PCR plate transferred through the specific logistics channel replicating the functionality of PCR laboratory pass-through windows. The system fully automates the entire workflow (from sample loading to result output) without manual intervention.
Applications
Infectious diseases, oncology & cancer, companion diagnostics, pharmacogenomics, reproductive & genetic health, veterinary, food & environment, etc.
One-Stop Integration

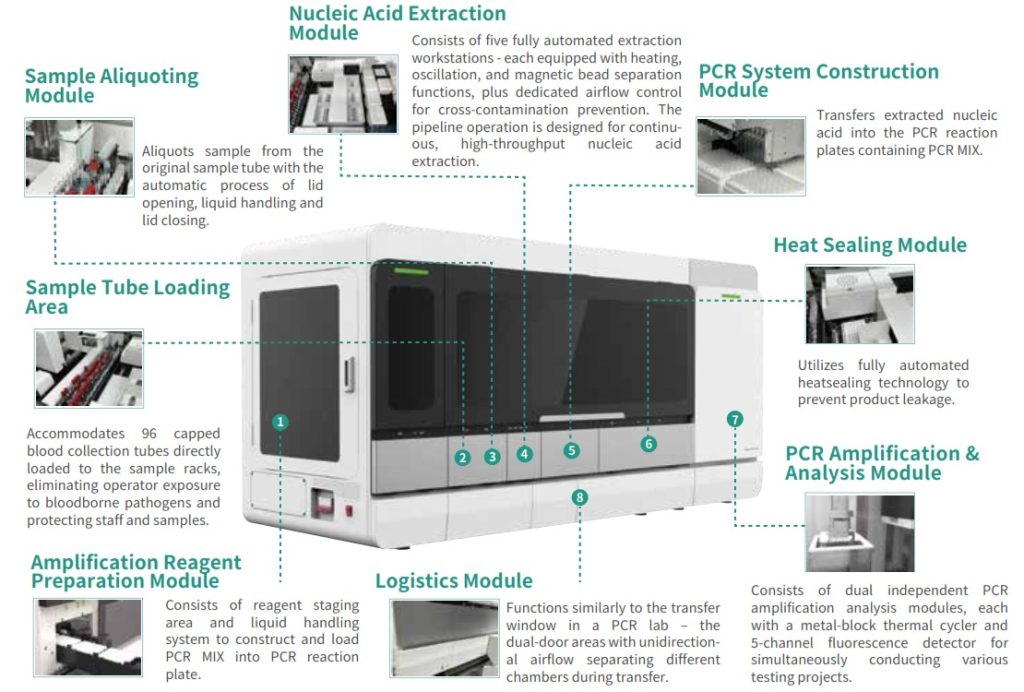

The GenePrecision 2200 integrates reagent preparation, sample aliquoting, nucleic acid extraction, PCR MIX preparation, PCR reaction
system construction, heat sealing, PCR amplification and result analysis into a single system – the truly All-in-One nucleic acid detection system.
User-Friendly Operating System
It is easy to operate simply load the original sample tubes, reagents and consumables, then run the test with one click, featuring an intuitive interface for effort less operation.
Open-Platform System
It supports configurable workflows for maximum compatibility across diverse reagent systems including commercial and lab-devel- oped reagent kits.
Efficient Contamination Prevention System
The instrument features three independent chambers with controlled pressure differentials and unidirectional airflow, plus integrated HEPA filtration and UV sterilization for maximum contamination prevention.
Automated Pipeline Operation
Three independently controlled chambers and five automated extraction workstations work with two parallel amplification units (enabling simultaneous different tests), allowing one operator to process 900 samples per day on a single system.
Intelligent Monitoring System
The liquid handling system features clot detection and liquid volume monitoring with alert functions, while the operation interface provides real-time running status tracking and error alarms.
