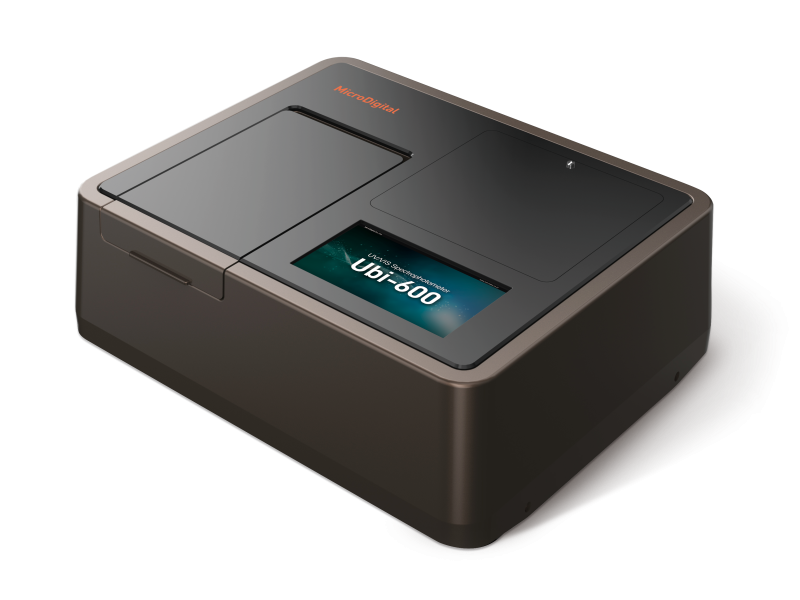

Ubi-600 UV/Vis Standalone Spectrophotometer

Product Description

The Ubi-600 is engineered to measure the light absorbed by samples during biochemical reactions, enabling precise analysis of sample concentrations via cuvettes, optical films, or test tubes.

Key Features
  • – 7-inch (800×480 PX) Touchscreen
  • – Built-in Automatic 8-cell Holder for automated measurement of large sample quantities
  • – Corrects deviations after prolonged use for sustained accuracy through auto system calibration
  • – 8mm aluminum base robust optical mount enhances stability and reliability
  • – Save measurement data directly to USB memory via the USB port
  • – Print results (in A4) by connecting a printer, no PC software required
Applications
  • Photometry
  • Quantification
  • Wavelength Scan
  • Kinetic
Accessories
  • – All-in-One Cell Holder: Supports 16mm / 25mm / 1-inch cuvettes
  • – Microvolume Cell Holder: Ideal for samples below 500 μL
  • – Film Holder: For solid samples like optical films or slide glasses that allow light transmission
  • – Test Tube Holder: Designed for test tubes used in applications such as water quality analysis (16–25mm)

Product Specifications

Photometric System Single beam
Photometric Range 0-200%T, -3.0-3.0A, 0-9999C
Spectral Bandwidth 1.8㎚
Wavelength Range 190 – 1,100㎚
Wavelength Accuracy ±0.5㎚
Wavelength Repeatability ≤0.2㎚
Stray Light ≤0.05%T220㎚, 360㎚
Photometric Accuracy ±0.2T(0-100%T) / ±0.002Abs(0-0.5Abs) / ±0.004Abs(0.5-1.0Abs)
Photometric Repeatability ≤0.05%T(0-100%T) / 0.001Abs(0-0.5Abs) / 0.002Abs(0.5-1.0Abs)
Stability ±0.001A/h@500㎚
Baseline Flatness ±0.001A
Noise ±0.005A
Display 7-inch (800 x 480px) Touch Screen
Data Output & Print Port USB
Light Source Tungsten Halogen Lamp & Deuterium Lamp
Power Requirements AC220V/50㎐
Detector Silicon Photodiode
Dimension 460 x 380 x 180㎜
Weight 20㎏
